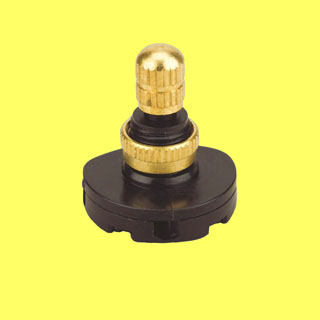

338   Rotary Switch





Model : 338
Rating : UL, CSA - 6A 125VAC, 3A 250VAC,
3A 125V"L", Temp. 85°C
Suitable
For		 : UL1015 AWG#18 wire or
UL3321 AWG#18 wire
(Strip wire 5-6mm)
Push wire terminals
Operation Sequence
Position Circuit
1 OFF
2 L-1
3 L-2
4 L-1-2

  E87438 LR68590
