338
Rotary Switch
Model
:
338
Rating
:
UL, CSA
6A 125VAC, 3A 250VAC,
3A 125V"L", Temp. 85°C
Suitable
For
:
UL1015 AWG#18 wire or
UL3321 AWG#18 wire

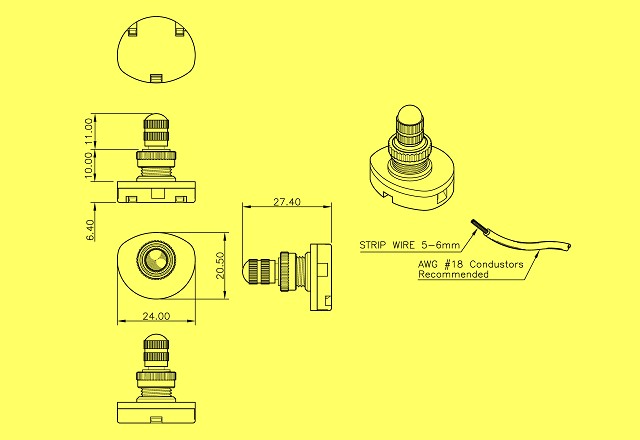

(Strip wire 5-6mm)
Push wire terminals
Operation Sequence
Position
Circuit
1
OFF
2
L-1
3
L-2
4
L-1-2
E87438
LR68590
Screw Nut
Screw Nut
