258A |
|

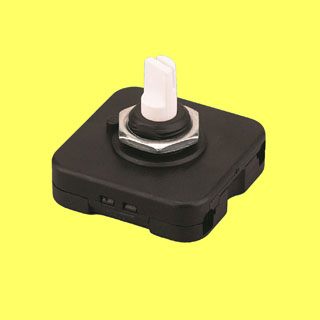

Rotary Switch |
 |
|
|
|
| |
|
|
|
|
| Model |
: |
258A |
| Rating |
: |
UL -
6A 125VAC,
3A 250VAC, Temp. 105°C
ENEC - 3(2)A 250VAC, T85 |
Suitable
For |
: |
UL1015 AWG#18 wire or
UL3321 AWG#18 wire or
0.5mm2 - 1.0mm2 wire
(Strip wire 7-8mm) |
| Push wire terminals |
|
| Operation Sequence |
| Position |
Circuit 2 |
| 1 |
OFF |
| 2 |
L-1 |
| 3 |
L-2 |
| 4 |
L-3 |
|
|
|
|
