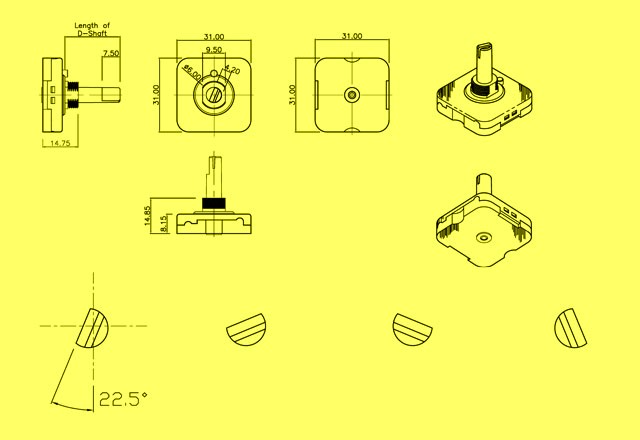

258A   Rotary Switch


Model : 258A
Rating : UL - 6A 125VAC,
3A 250VAC, Temp. 105°C
ENEC - 3(2)A 250VAC, T85
Suitable
For		 : UL1015 AWG#18 wire or
UL3321 AWG#18 wire or
0.5mm2 - 1.0mm2 wire
(Strip wire 7-8mm)
Push wire terminals
Operation Sequence
Position Circuit 2
1 OFF
2 L-1
3 L-2
4 L-3

  E87438 2078883.02




Screw Nut

Screw Nut
