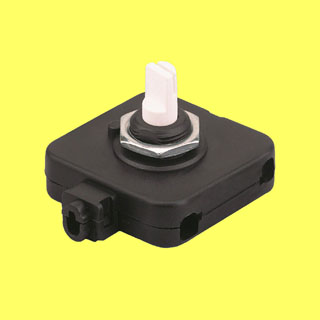

228A |
|
Rotary Switch |
 |
|
|
|
| |
|
|
|
|
| Model |
: |
228A |
| Rating |
: |
UL -
6A 125VAC, 3A 250VAC, Temp. 125°C
ENEC - 4(2)A 250VAC,
4(1)A 250VAC, T125 |
Suitable
For |
: |
UL1015 AWG#18 wire or
UL3321 AWG#18 wire or
0.5mm2 - 1.0mm2 wire
(Strip wire 7-8mm) |
| Push wire terminals |
|
| Operation Sequence |
| Position |
Circuit 2 |
Circuit 12 |
| 1 |
OFF |
OFF |
| 2 |
L-1-C |
L-3-C |
| 3 |
L-2-C |
L-2-C |
| 4 |
L-3-C |
L-1-C |
|
|
|
|
