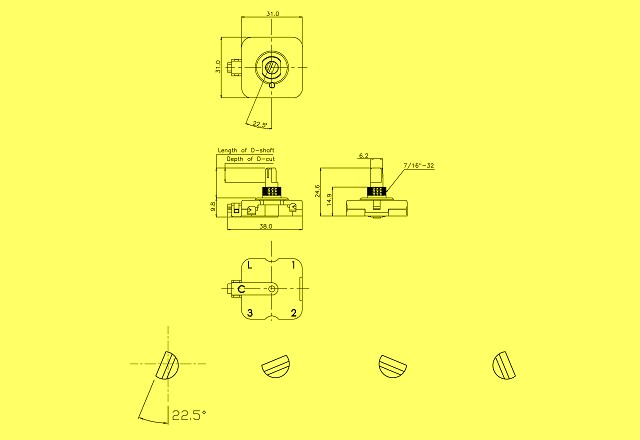

228A
Rotary Switch
Model
:
228A
Rating
:
UL - 6A 125VAC,
3A 250VAC, Temp. 125°C
ENEC - 4(2)A 250VAC,
4(1)A 250VAC, T125
Suitable
For
:
UL1015 AWG#18 wire or
UL3321 AWG#18 wire or
0.5mm
2
- 1.0mm
2
wire
(Strip wire 7-8mm)
Push wire terminals
Operation Sequence
Position
Circuit 2
Circuit 12
1
OFF
OFF
2
L-1-C
L-3-C
3
L-2-C
L-2-C
4
L-3-C
L-1-C
E87438
2078883.01
Screw Nut
Screw Nut
