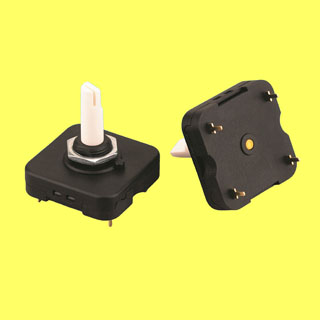

218A |
|
Rotary Switch |
 |
|
|
|
| |
|
|
|
|
| Model |
: |
218A |
| Rating |
: |
UL
3A 125VAC,
3A 250VAC, Temp. 105°C
ENEC 3(1)A 250VAC µ T105 |
| PCB Soldering terminals |
|
| Operation Sequence |
| Position |
Circuit 20 |
Circuit 21 |
| 1 |
OFF |
OFF |
| 2 |
L-1 |
L-1 |
| 3 |
L-2-3 |
L-2-3 |
| 4 |
L-2 |
L-2 |
| 5 |
L-3 |
L-3 |
| 6 |
OFF |
-- |
|
|
|
|
