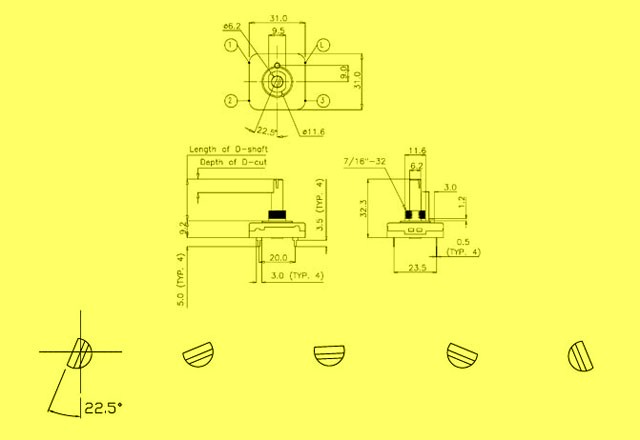

218A   Rotary Switch


Model : 218A
Rating : UL 3A 125VAC, 3A 250VAC, Temp. 105°C
ENEC 3(1)A 250VAC µ T105
PCB Soldering terminals
Operation Sequence
Position Circuit 20 Circuit 21
1 OFF OFF
2 L-1 L-1
3 L-2-3 L-2-3
4 L-2 L-2
5 L-3 L-3
6 OFF --

  E87438 2078883.01




Screw Nut

Screw Nut
