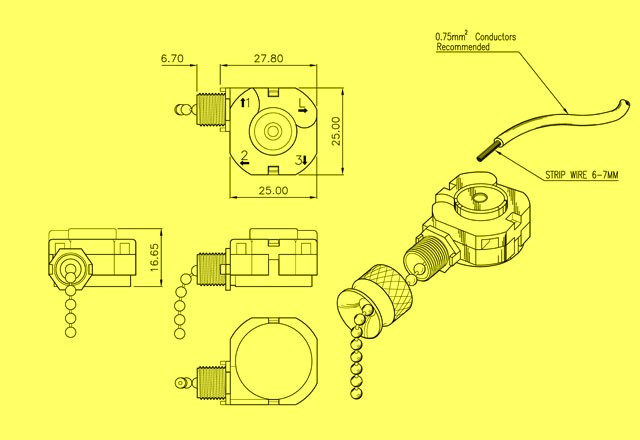

3089TR   Speed Contrl Pull Chain Switch


Model : 3089TR
Rating : TÜV 3(2A) 250VAC, T85
Suitable
For		 : 0.75mm2 wire
(Strip wire 6-7mm)
Push wire terminals
Operation Sequence
Position Circuit
1 OFF
2 L-1
3 L-2
4 L-3

  R9553107




Plastic Chain

BK
Black		 BR
Brown		 WH
White		 YE
Yellow


Screw Nut - Brass
01
Polish Brass		 02
Antique Brass		 03
Nickel Plated		 04
Pearl Black		 05
Nickel Plated
without Grid
06
Straight Barrel
in Polish Brass 		07
Straight Barrel
in Nickel Plated		 08
Ball Shape
in Polish Brass		 09
Ball Shape
in Nickel Plated		 10
Bronze

11
Ball Shape
in Antique Brass		 12
Pearl Nickel 		13
Charcoal Black		 14
Chrome Plated
Screw Nut - Zinc Alloy
31
Polish Brass		 32
Antique Brass		 33
Nickel Plated		 34
Pearl Black		 313
Charcoal Black
