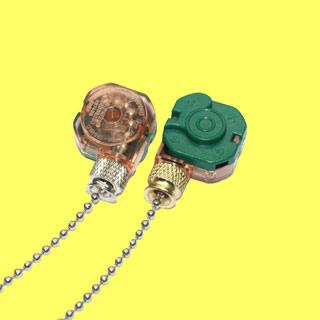

3089G |
|
Speed Control
Pull Chain Switch |
 |
|
|
|
| |
|
|
|
|
| Model |
: |
3089G |
| Rating |
: |
UL, CSA
- 6A 125VAC,
3A 250VAC,
Temp. 85°C |
Suitable
For |
: |
UL1015 AWG#18 wire or
UL3321 AWG#18 wire
(Strip wire 6-7mm) |
| Push wire terminals |
|
| Operation Sequence |
| Position |
Circuit |
| 1 |
OFF |
| 2 |
2-L-1 |
| 3 |
2-3-1 |
| 4 |
2-3 |
|
|
|
|
