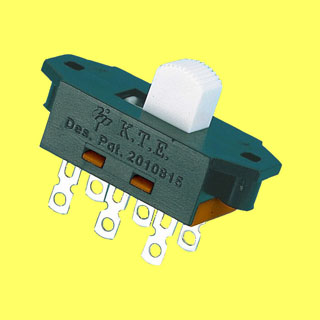

3008   Slide Switch (Plastic Case)





Model : 3008
Rating : UL, CSA
15A 125VAC, 7.5A 250VAC,
0.5A 125VDC, Temp. 85°C
Soldering Terminals
Operation Sequence
Position Circuit
1 1-2,4-5
2 2-3,5-6

  E87438 LR68590
