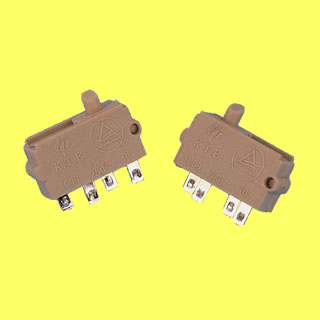

1009   Slide Switch (Plastic Case)





Model : 2009
Rating : TÜV 3(2A) 250VAC, T85
Soldering Terminals
Operation Sequence
Position Circuit Circuit
  3T 4T
1 1-2 1-2
2 2-3 2-3
3 OFF 3-4

  R9857908
